Logic
Bitwise Match
Description (description coming soon)
Availability
  • Available only in the dw2xx series products
  • Requires library: Process Control (option -05)
  • Firmware versions 0x2006 and later

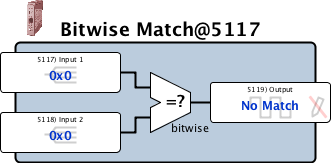

savvy-SFD Graphic bitwiseMatch
Graphic with Parameters bitwiseMatch

Parameters

Input 1 Input, Read-write, Hexadecimal (unsigned 16-bit integer)
0 to 65535
Input 2 Input, Read-write, Hexadecimal (unsigned 16-bit integer)
0 to 65535
Output Output, Read-only, Boolean (signed 16-bit integer)
0 = No Match
1 = Match
