Logic
Bitwise Shift
Description (description coming soon)
Availability
  • Requires library: Process Control (option -05)
  • Firmware versions 0x1030 and later
savvy-SFD Graphic bitwiseShift

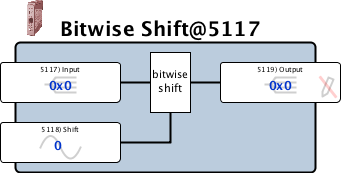

Graphic with Parameters bitwiseShift

Parameters

Input Input, Read-write, Hexadecimal (unsigned 16-bit integer)
0 to 65535
Shift Input, Read-write, Analog (signed 16-bit integer)
-15 to 15

Positive numbers shift left, Negative numbers shift right.
Output Output, Read-only, Hexadecimal (unsigned 16-bit integer)
0 to 65535
