Math
Calculator
Description Programmable calculator
Availability
  • Available only in the dw2xx series products
  • Requires library: Advanced Math (option -10)
  • Firmware versions 0x2016 and later

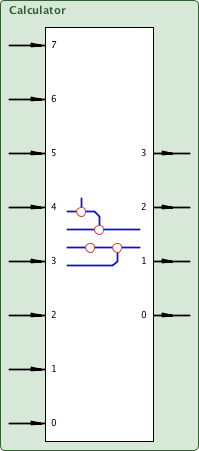

savvy-SFD Graphic calculator

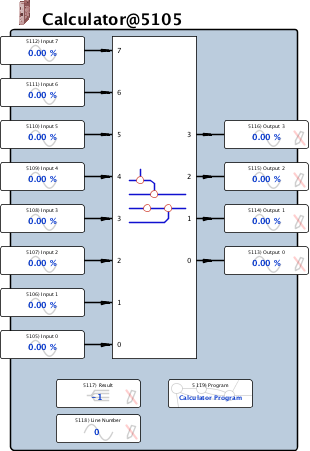

Graphic with Parameters calculator

Parameters

Input 0 Input, Read-write, Analog (signed 16-bit integer)
-327.68 % to 327.67 %
Input 1 Input, Read-write, Analog (signed 16-bit integer)
-327.68 % to 327.67 %
Input 2 Input, Read-write, Analog (signed 16-bit integer)
-327.68 % to 327.67 %
Input 3 Input, Read-write, Analog (signed 16-bit integer)
-327.68 % to 327.67 %
Input 4 Input, Read-write, Analog (signed 16-bit integer)
-327.68 % to 327.67 %
Input 5 Input, Read-write, Analog (signed 16-bit integer)
-327.68 % to 327.67 %
Input 6 Input, Read-write, Analog (signed 16-bit integer)
-327.68 % to 327.67 %
Input 7 Input, Read-write, Analog (signed 16-bit integer)
-327.68 % to 327.67 %
Output 0 Output, Read-only, Analog (signed 16-bit integer)
-327.68 % to 327.67 %
Output 1 Output, Read-only, Analog (signed 16-bit integer)
-327.68 % to 327.67 %
Output 2 Output, Read-only, Analog (signed 16-bit integer)
-327.68 % to 327.67 %
Output 3 Output, Read-only, Analog (signed 16-bit integer)
-327.68 % to 327.67 %
Result Internal Parameter, Read-only, Enumerated (signed 16-bit integer)
0 = OK
1 = No Program
2 = Unknown Operation
3 = Stack Underflow
4 = Stack Overflow
Line Number Internal Parameter, Read-only, Analog (signed 16-bit integer)
0 to 2048

Length of program or line at which error occurred
Program Internal Parameter, Read-write, Calculator Program (Byte Array)
