Logic
Combinational 6-4
Description (description coming soon)
Availability
  • Available only in the dw2xx series products
  • Requires library: Process Control (option -05)
  • Firmware versions 0x2016 and later

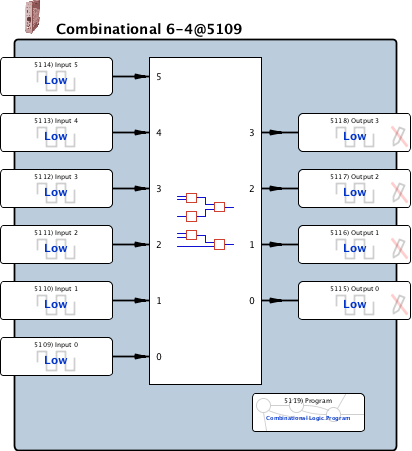

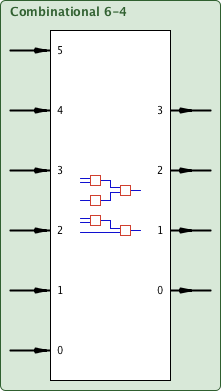

savvy-SFD Graphic comboLogic
Graphic with Parameters comboLogic

Parameters

Input 0 Input, Read-write, Boolean (signed 16-bit integer)
0 = Low
1 = High
Input 1 Input, Read-write, Boolean (signed 16-bit integer)
0 = Low
1 = High
Input 2 Input, Read-write, Boolean (signed 16-bit integer)
0 = Low
1 = High
Input 3 Input, Read-write, Boolean (signed 16-bit integer)
0 = Low
1 = High
Input 4 Input, Read-write, Boolean (signed 16-bit integer)
0 = Low
1 = High
Input 5 Input, Read-write, Boolean (signed 16-bit integer)
0 = Low
1 = High
Output 0 Output, Read-only, Boolean (signed 16-bit integer)
0 = Low
1 = High
Output 1 Output, Read-only, Boolean (signed 16-bit integer)
0 = Low
1 = High
Output 2 Output, Read-only, Boolean (signed 16-bit integer)
0 = Low
1 = High
Output 3 Output, Read-only, Boolean (signed 16-bit integer)
0 = Low
1 = High
Program Internal Parameter, Read-write, Combinational Logic Program (Byte Array)
