Logic
8-Way Demultiplexer
Description (description coming soon)
Availability
  • Available only in the dw2xx series products
  • Requires library: Process Control (option -05)
  • Firmware versions 0x2017 and later

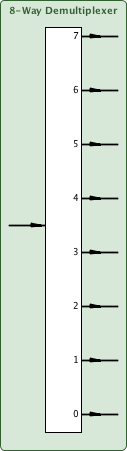

savvy-SFD Graphic demux8

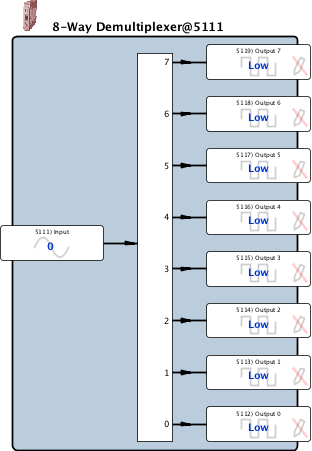

Graphic with Parameters demux8

Parameters

Input Input, Read-write, Analog (signed 16-bit integer)
0 to 7
Output 0 Output, Read-only, Boolean (signed 16-bit integer)
0 = Low
1 = High
Output 1 Output, Read-only, Boolean (signed 16-bit integer)
0 = Low
1 = High
Output 2 Output, Read-only, Boolean (signed 16-bit integer)
0 = Low
1 = High
Output 3 Output, Read-only, Boolean (signed 16-bit integer)
0 = Low
1 = High
Output 4 Output, Read-only, Boolean (signed 16-bit integer)
0 = Low
1 = High
Output 5 Output, Read-only, Boolean (signed 16-bit integer)
0 = Low
1 = High
Output 6 Output, Read-only, Boolean (signed 16-bit integer)
0 = Low
1 = High
Output 7 Output, Read-only, Boolean (signed 16-bit integer)
0 = Low
1 = High
