I/O
T5 Digital Input
Description (description coming soon)
Availability
  • Available only in the dw2xx series products
  • Requires library: System & I/O
  • Requires: Six Digital Inputs
  • Singleton function block
  • Firmware versions 0x2006 and later
savvy-SFD Graphic dinT5

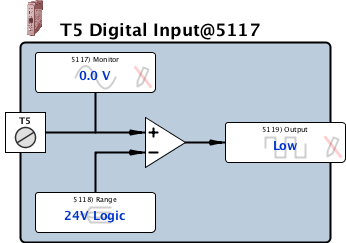

Graphic with Parameters dinT5

Parameters

Monitor Output, Read-only, Analog (signed 16-bit integer)
0.0 V to 30.0 V
Range Input, Read-write, Enumerated (signed 16-bit integer)
0 = 5V Logic
1 = 12V Logic
2 = 24V Logic
Output Output, Read-only, Boolean (signed 16-bit integer)
0 = Low
1 = High
