I/O
T23 Digital Output
Description (description coming soon)
Availability
  • Available only in the dw2xx series products
  • Requires library: System & I/O
  • Requires: Analog and Digital I/O
  • Singleton function block
  • Firmware versions 0x2000 and later
savvy-SFD Graphic dopT23

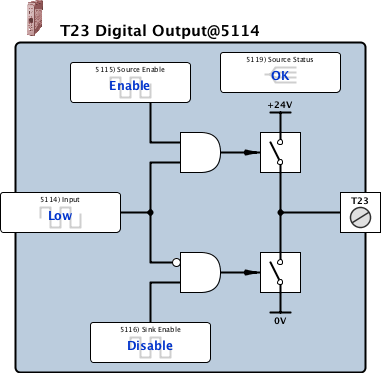

Graphic with Parameters dopT23

Parameters

Input Input, Read-write, Boolean (signed 16-bit integer)
0 = Low
1 = High
Source Enable Input, Read-write, Boolean (signed 16-bit integer)
0 = Disable
1 = Enable
Sink Enable Input, Read-write, Boolean (signed 16-bit integer)
0 = Disable
1 = Enable
Source Status Internal Parameter, Read-write, Enumerated (signed 16-bit integer)

Warning: resetting a fault will momentarily reset the entire I/O subsytem.
0 = Reset
1 = OK
2 = Fault
