Frequency
T4 High Frequency Input
Description (description coming soon)
Availability
  • Available only in the dw2xx series products
  • Requires library: System & I/O
  • Requires: Frequency I/O
  • Singleton function block
  • Firmware versions 0x201C and later

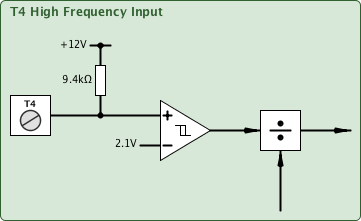

savvy-SFD Graphic freq2fih

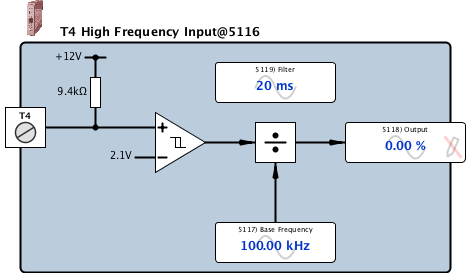

Graphic with Parameters freq2fih

Parameters

Input Type Internal Parameter, Read-only, Enumerated (signed 16-bit integer)
0 = High-level, Pull-up
2 = High level, Pull-down
32 = Low level, Pull-up
34 = Low level, Pull-down
Base Frequency Input, Read-write, Analog (unsigned 16-bit integer)
10.00 kHz to 500.00 kHz
Output Output, Read-only, Analog (signed 16-bit integer)
0.00 % to 327.67 %
Filter Internal Parameter, Read-write, Analog (signed 16-bit integer)
4 ms to 124 ms
