Frequency
Frequency Status Monitor
Description (description coming soon)
Availability
  • Available only in the dw2xx series products
  • Requires library: System & I/O
  • Requires: Frequency I/O
  • Singleton function block
  • Firmware versions 0x2017 and later
savvy-SFD Graphic freqStatus

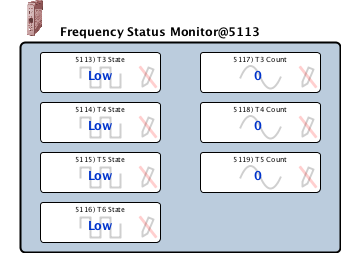

Graphic with Parameters freqStatus

Parameters

T3 State Internal Parameter, Read-only, Boolean (signed 16-bit integer)
0 = Low
1 = High
T4 State Internal Parameter, Read-only, Boolean (signed 16-bit integer)
0 = Low
1 = High
T5 State Internal Parameter, Read-only, Boolean (signed 16-bit integer)
0 = Low
1 = High
T6 State Internal Parameter, Read-only, Boolean (signed 16-bit integer)
0 = Low
1 = High
T3 Count Internal Parameter, Read-only, Analog (unsigned 16-bit integer)
0 to 65535
T4 Count Internal Parameter, Read-only, Analog (unsigned 16-bit integer)
0 to 65535
T5 Count Internal Parameter, Read-only, Analog (unsigned 16-bit integer)
0 to 65535
