Time Counters
Minutes Counter
Description (description coming soon)
Availability
  • Available only in the dw2xx series products
  • Requires library: Process Control (option -05)
  • Firmware versions 0x2001 and later

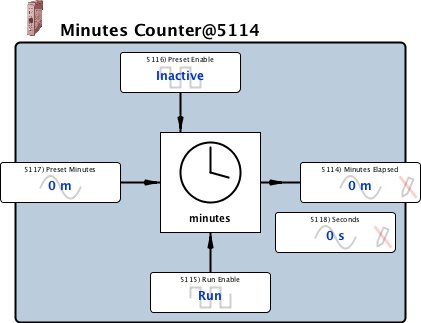

savvy-SFD Graphic minsCounter
Graphic with Parameters minsCounter

Parameters

Minutes Elapsed Output, Read-only, Analog (signed 16-bit integer)
0 m to 32767 m
32767 = overflow
Run Enable Input, Read-write, Boolean (signed 16-bit integer)
0 = Stop
1 = Run
Preset Enable Input, Read-write, Boolean (signed 16-bit integer)
0 = Inactive
1 = Preset
Preset Minutes Input, Read-write, Analog (signed 16-bit integer)
0 m to 32766 m
Seconds Internal Parameter, Read-only, Analog (unsigned 16-bit integer)
0 s to 59 s
