I/O
Registration
Description Incompatible with ENC1 Position and ENC2 Position function blocks.
Availability
  • Available only in the dw1xx series products
  • Requires library: Encoder Control (option -11)
  • Singleton function block
  • Firmware versions 0x1029 and later

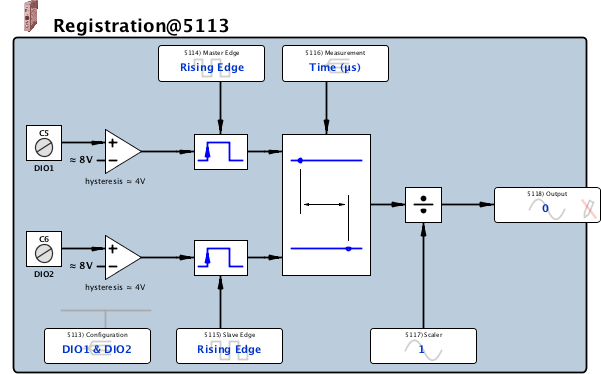

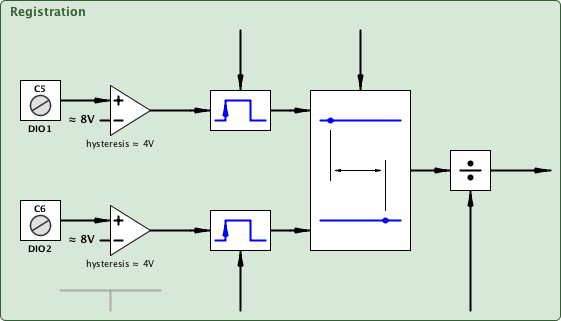

savvy-SFD Graphic registration
Graphic with Parameters registration

Parameters

Configuration Input, Read-write, Enumerated (signed 16-bit integer)
0 = DIO1 & DIO2
1 = DIO1 & ENC2 Z
2 = DIO2 & ENC1 Z
3 = ENC1 Z & ENC2 Z
Master Edge Input, Read-write, Boolean (signed 16-bit integer)
0 = Rising Edge
1 = Falling Edge
Slave Edge Input, Read-write, Boolean (signed 16-bit integer)
0 = Rising Edge
1 = Falling Edge
Measurement Input, Read-write, Enumerated (signed 16-bit integer)
0 = Time (µs)
1 = ENC1 Counts
2 = ENC2 Counts
Scaler Input, Read-write, Analog (signed 16-bit integer)
-32767 to 32767
Output Output, Read-only, Analog (signed 16-bit integer)
-32767 to 32767
