Latches
SR Latch
Description Reset is dominant over Set
Availability
  • Requires library: Process Control (option -05)
  • Firmware versions 0x1007 and later

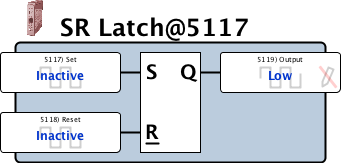

savvy-SFD Graphic srLatch
Graphic with Parameters srLatch

Parameters

Set Input, Read-write, Boolean (signed 16-bit integer)
0 = Inactive
1 = Set
Reset Input, Read-write, Boolean (signed 16-bit integer)
0 = Inactive
1 = Reset
Output Output, Read-only, Set to default on hard initialization, Boolean (signed 16-bit integer)
0 = Low
1 = High
