Latches
T Latch
Description (description coming soon)
Availability
  • Requires library: Process Control (option -05)
  • Firmware versions 0x1007 and later
savvy-SFD Graphic tLatch

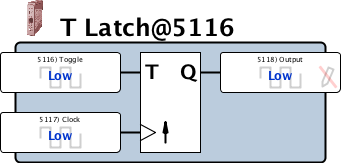

Graphic with Parameters tLatch

Parameters

Toggle Input, Read-write, Boolean (signed 16-bit integer)
0 = Low
1 = High
Clock Input, Read-write, Boolean (signed 16-bit integer)
0 = Low
1 = High
Output Output, Read-only, Set to default on hard initialization, Boolean (signed 16-bit integer)
0 = Low
1 = High
