Timers
Underlap
Description (description coming soon)
Availability
  • Requires library: Process Control (option -05)
  • Firmware versions 0x1029 and later
savvy-SFD Graphic underlap

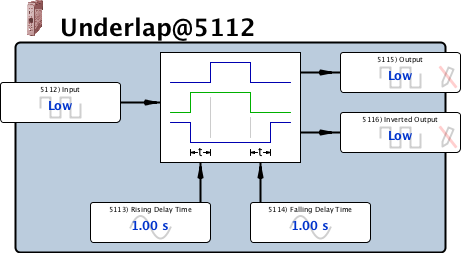

Graphic with Parameters underlap

Parameters

Input Input, Read-write, Boolean (signed 16-bit integer)
0 = Low
1 = High
Rising Delay Time Input, Read-write, Analog (unsigned 16-bit integer)
0.00 s to 600.00 s
Falling Delay Time Input, Read-write, Analog (unsigned 16-bit integer)
0.00 s to 600.00 s
Output Output, Read-only, Set to default on hard initialization, Boolean (signed 16-bit integer)
0 = Low
1 = High
Inverted Output Output, Read-only, Set to default on hard initialization, Boolean (signed 16-bit integer)
0 = Low
1 = High
