The built-in pages provide a device-centric view of a drive.web system. It is often desirable to have pages that are oriented toward the machine or the process. There are two ways to accomplish this:
driveweb Technologies
1-888-667-7333
+1-410-604-3400
more info
Customized Pages
We can provide fully customized graphical pages to the customer's specification. Contact us for more information and pricing.
Parameter Docks
You can create user-defined pages or "Docks" as needed by one of the three methods described below.
Note to Mac OS X users: these docks are distinct from the system dock (although similar conceptually).
Docks: Drag and Drop
You can drag a parameter from a built-in page and drop it into a new viewer.
- Open a new window by selecting 'New Viewer' from the 'File' menu.
- Click on the first parameter, drag it, and drop it into the new window. This will place the parameter in the center of the window. (You may want to zoom or pan the window to provide room for more parameters.)

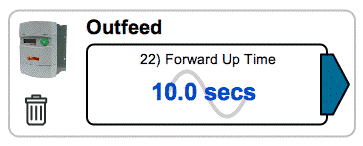

- As shown below, parameters in Docks have a wrapper that includes the icon and name of their containing device.
- Drag other parameters into the window and place them as desired. Note that you cannot place a parameter on top of another parameter. Also, if you drag the mouse near the edge of the window, the window will scroll.
- To move parameters within the window, drag them.
- To delete parameters, click on their trash can icon.
- Once you are happy with the layout, save the file - choose 'Save As...' from the 'File' menu. You can open it again by choosing 'Open File...' from the 'File' menu. You can also open recent files from the 'Open Recent' submenu in the 'File' menu; these will open in a new window unless you hold down the control key (command/apple key on the Mac).
Docks: Contextual Menu
Pick the 'Add to Parameter Dock' item from a parameter's contextual menu (if no dock is open, a new one will be created; if there is more than one dock open, you can choose the one you want from the hierarchical menu). The parameter will be added to the dock in a location determined by software; you can drag it to a better location, if you desire.
Docks: Copy and Paste
Pick the 'Copy' item from a parameter's contextual menu and then bring the dock you want to use to the front and press control-V (command-V on a Mac). As above, the parameter will be added to the dock in a location determined by software; you can drag it to a better location, if you desire.
Trend Charts
Docks can be viewed in the normal "Parameter Mode" or in "Trend Mode"; switching between the two modes is accomplished via the 'Dock' menu. While in "Parameter Mode", selecting 'Show Trend' will switch the dock into "Trend Mode"; similarly, while in "Trend Mode", selecting 'Show Parameters' will switch the dock into "Parameter Mode".
The rest of this section assumes you are in "Trend Mode", which presents the parameters on a trend chart with time on the X axis and the parameter value on the Y axis. Up to seven parameters may be displayed (if there are more parameters in the dock, only the first seven parameters will be shown).
When you move the mouse over the trend chart, information is displayed in the status bar. The time is shown and, if you move the mouse close to trend line, the parameter name and value for that trend line. You can pick 'Show Trend Point Info' from the dock's contextual menu to get information on all the parameters for that point in time.
You can set the time span for the trend chart from the menu. The chart continuously updates unless you select the 'Hold' menu item. You can zoom and pan the chart as needed.
Note that the effective sample rate for a parameter is affected by how many parameters in the device are being polled. Closing other windows and reducing the number of parameters in the dock may increase the effective sample rate.
