drive.web App Overview
Configured options for smarty & speedy



These options are pre-programmed units with generic solutions for key applications. The packages are a great design aid.

These generic configurations are easily edited to suit your specific installation using

savvy

with the

SFD

Signal Flow Diagram option and include the following features:
  • Detail signal flow diagram documentation
  • savvyPanel

    touch screen PC or iOS operator station configuration
  • Basic wiring drawing

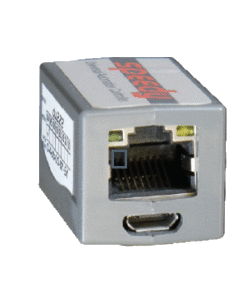

speedy
Networkable, DIN rail mounting, programmable controllers with digital and analog i/o by Bardac Drives

speedy

smartyspeedy
dw210dw212dw213dw214dw215dw220dw221dw222dw223dw224dw225
-1101Open loop constant tension center winder (includes options 05, 06, 26)XXXXXXXXX
-1102Closed loop dancer controlled winder (includes options 05, 06, 26)XXXXXXXXX
-1103Closed loop loadcell controlled winder (includes options 05, 06, 26)XXXXXXXXX
-1104Slip core winder controller (includes options 05, 06, 26)XXXXXXXXX
-1105Speed lock with encoder feedback (includes options 05, 11, 16, 26, 42 & 45 or 46)XXX
-1106Coordinated drive, line master controller (includes options 05, 26)XXXXXXXXXX
-1107Controller networking for an analog/logic interface to drive (includes opts 05, 26)X
-1109Phase lock, electronic line shaft + registration (includes opts 05, 11, 16, 26, 42 & 45 or 46)XXX
-1110Three PID Controllers with integral reset and hold (includes options 05, 26)XXXXXXXXXXX
-11132 Channel pulse train follower with ratio setting (includes options 05, 26, 27)XXXXX
-1117Encoder cyclic position w/indexing (includes opts 05, 11, 16, 26, 42 & 45 or 46)XXX
-1118Sun tracking for solar energy sys. (includes options 05, 11, 16, 26, 42 & 45 or 46)XXXXX
