smarty Overview

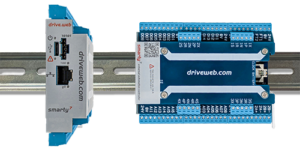

A family of networkable, DIN rail mounting, programmable controllers with digital and analog I/O.
drive.web smarty UACs are offered in a variety of configurations . . .
smarty dw250
smarty7 dw250

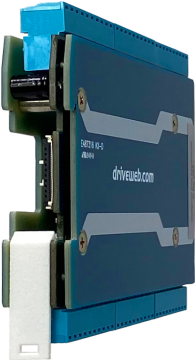

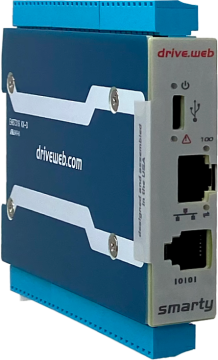

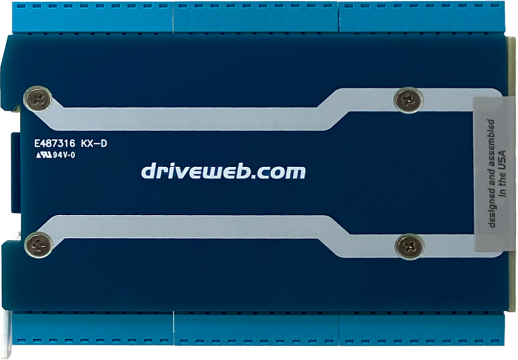

Smart, compact packaging
0.82" x 3.62” x 4.73”
[21 x 92 x 120 mm (WxHxD)]
0.82" x 3.62” x 4.73”
[21 x 92 x 120 mm (WxHxD)]
Overview

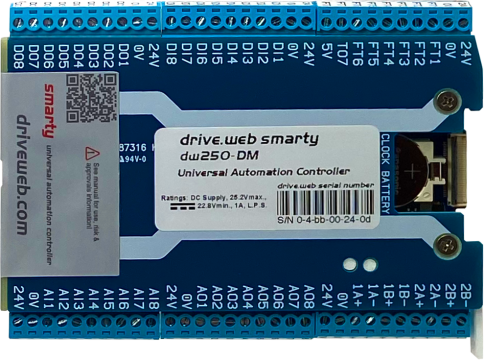

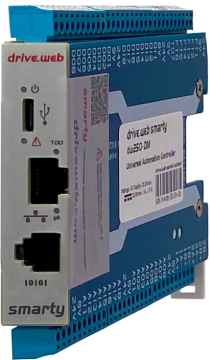

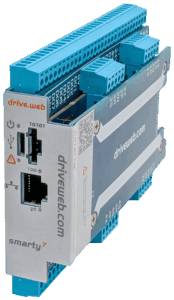

NEW smarty7
The new smarty7, dw250 series controllers are a full featured range of high performance, industrial, programmable controllers for process and machine control that provide cost effective solutions for systems of any size or complexity.
The Basics
- designed & assembled in the USA
- smart distributed control for the IIoT
- peer-to-peer connections over Ethernet
- unlimited i/o expansion
- Internet accessible
- 100% compatibility with all other drive.web devices
- savvy design, monitoring, and diagnostic tools
Features
- performs complex motion control functions & logic in milliseconds
- encoder pulses up to 1 MHz with 64 bit count
- shares encoder pulses in real-time between units over Ethernet
- 60 plug-in terminals
- cost effective in systems of any size or complexity
- Floating point or integer math
- Clock time & date with SNTP server interface
- savvy tools with trending, smart phone interface, drag & drop connections
- 100baseTX Ethernet with drive.web peer-to-peer networking
- USB-C port – provides system-wide access to all devices – drives, controllers, touch screens, etc.
- Battery holder for real time clock

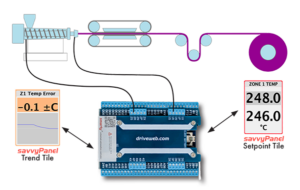

Applications
- basic switching to complex logic
- simple arithmetic to complex math
- winders, open/closed loop with smart tension control
- registration, indexing, electronic line shaft over Ethernet
- advanced motion and position control
- smart pumping and air flow functions
- sun tracking for solar energy optimization
- material handling, batch, and counting functions
Standard savvyPanel Library
For iPad, iPhone, and touchscreen PC operator stations with arrows, meters, start and stop pushbuttons.
Standards Compliance in Process:
UL, cUL, CE, UKCA, FCC 47 CFR § 15, and ICES-003
Specifications
Models & Options
Dimensions
Images
Downloads
smarty dw240
Overview
smarty dw240 series
The world’s most advanced Universal Automation Controller
Advanced Motion Control
Smart Process Control
Distributed, deterministic processing over Ethernet
Homogeneous integration for drives, HMIs, remote I/O
savvy system design tools
Right for the IIoT future
Easy, intuitive, affordable, expandable
For systems of any size or complexity
The smarty dw240 series comes fully loaded:
- Install a dw240 on the customer interface terminal rail to save on wiring and installation costs!
- Floating point math for accurate and complex calculations.
- Count and Frequency with 64-bit count for precision positioning; to 1MHz input, 500kHz output.
- High speed event inputs for position markers and registration.
- Processing and networking speeds that are up to 10 times faster than the dw210, especially with larger configurations.
- Increased storage; four times more capacity.
- Up to six frequency inputs with multiple modes.
- Up to two current inputs; 0 to 20mA, 4-20mA.
- Up to two encoder inputs.
- Up to seven timing outputs with multiple modes to 500kHz; frequency, stepper, and digital.
- Real-time clock with optional battery back up. Low-power mode allows real time clock to run without power from coin cell battery, USB power, or 24-hour internal storage.
- Sensor bus for large, smarty-dedicated networks to be announced.
- XIO, Extended I/O port for up to 10 fast-updating modules with up to 16 I/O on each. Modules for high current, high voltage, precision analog, load cells and more are planned.
- Every dw240 comes fully equipped with dw build options -04 -05 -06 -10 -25 -26 -29 -39 as standard! (smarty2 and above)
Every smarty dw240 model is available with either screw or spring clamp terminations.
Choose the option that best suits your application!
Specifications
Models & Options
Dimensions
Images
Downloads
smarty dw210
Smart, compact packaging
4.09” high x 0.91” wide x 4.72” deep (104 x 23 x 120 mm)
4.09” high x 0.91” wide x 4.72” deep (104 x 23 x 120 mm)
Overview
Smart Distributed Control Concept
- No system bandwidth degradation with systems of any size
- One completely homogeneous environment for drives, controls, operator stations, i/o – everything!
- Complete data consistency throughout a system
- The ability to store the entire system configuration in the controllers for easy field total access
- The ability to manage total system program thread and hierarchy
- Consistent multi-level password protection
Key Features
- Ethernet peer-to-peer networking
- Gateway options for ModbusTCP/IP, EIP, CANopen and others
- Internet access
- Graphical Signal Flow Diagram system documentation
- Additional i/o
- Easy interface to most operator stations, PLCs, SCADA, etc.
- Event driven emails from devices
Precision
- 16-bit integer basic arithmetic
- 32-bit floating point calculator functions
- 64-bit encoder pulse counting
Standard savvyPanel Library
For iPad, iPhone, and touchscreen PC operator stations with arrows, meters, start and stop pushbuttons.
Standard Function Block Library
- Adders, Subtracters, Multipliers, Dividers, Clamps, Switches, Logic
- Event driven email messages
- Full featured PI controllers
Optional Function Block Libraries
- Advanced Process Control & PLC
- Winder Control
- Advanced Math
- Encoder Position & Indexing
Standards
Specifications
Models & Options
Dimensions
Downloads
