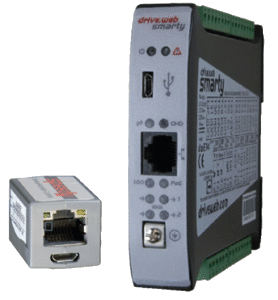

smarty & speedy - Stock Controllers (un-configured)

speedy & smarty standard programmable controller dwOPTION -00

  • Basic drive coordination and peer to peer networking over Ethernet
  • Basic machine control

Select one of the following controllers, plus one of the OPTION PACKS included in the tabs below:

  • smarty
    • dw210 – smarty for standalone or networked applications
      General purpose programmable controller or drive interface controller
    • dw212 – smarty dedicated interface controller for ODE2 General Purpose AC Drives
    • dw213 – smarty dedicated interface controller for ODP Sensorless Vector Drives
    • dw214 – smarty dedicated interface controller for ODP2 Closed Loop Vector Drives
    • dw215 – smarty dedicated interface controller for Yaskawa F7 Drives
  • speedy
    • dw220 – speedy generic interface controller with ModbusRTU master with 15” wire interface
    • dw221 – speedy plug-in controller for PL/X Series DC Drives
    • dw222 – speedy plug-in controller for ODE2 General Purpose VFD
    • dw223 – speedy plug-in controller for ODP Sensorless Vector Drives
    • dw224 – speedy plug-in controller for ODP2 Closed Loop Vector Drives
    • dw225 – speedy controller for Yaskawa F7 Drives with 15” wired interface

Includes 100baseTX Ethernet and USB port with system wide access together with:

  • Basic arithmetic
  • Logic
  • PI control
  • Clamp
  • Basic savvyPanel touch screen PC/iOS control
  • Systems utilities
  • Event email

speedy & smarty dwOPTION -1121 for:

  • Process line drive coordination
  • General purpose machine control

Includes all standard controller features together with:
advanced arithmetic, logic, process control, counters, timers, touch screen PC/iOS control, systems utilities

Incorporates standard drive.web options

  • -04, ModbusTCP/IP slave Ethernet
  • -05, Advanced Process control Function Block Library
  • -25, EIP/PCCC Ethernet slave for Allen Bradley interface
  • -26, savvyPanel full featured, touch screen PC and iOS operator station controller

speedy & smarty dwOPTION -1122 for:

  • Full featured winder control with single or multi cores, turret indexing, auto splicing, open and closed loop, edging
  • Web handling, tension control, accumulators, infeeds, center winding, slip core, surface winding

Includes all pack 1, dwOPTION -1121 features together with:
diameter calculation, linear and hyperbolic taper control, static/dynamic friction compensation, inertia compensation

Incorporates standard drive.web options

  • -04, ModbusTCP/IP slave Ethernet
  • -05, Advanced Process control Function Block Library
  • -06, Winder Control Function Block Library
  • -25, EIP/PCCC Ethernet slave for Allen Bradley interface
  • -26, savvyPanel full featured, touch screen PC and iOS operator station controller
  • -36, Motion Control Function Block Library with trapezoidal & cam motion
