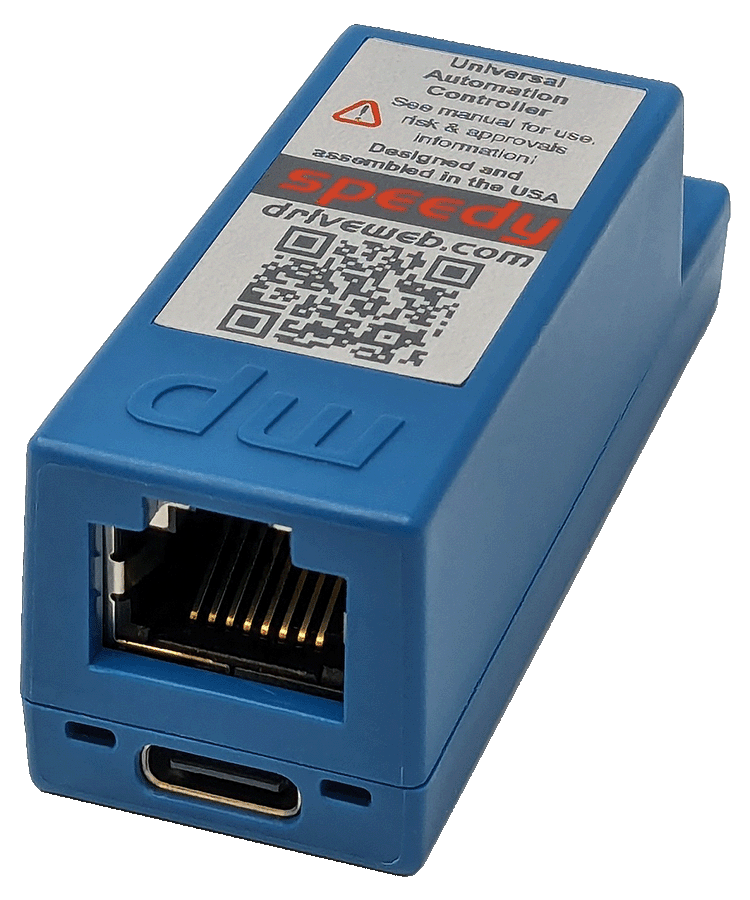

speedy Embedded & Onboard Controllers

A family of miniature controllers designed to embed or mount onboard devices,
such as drives, to provide full-featured automation functions and peer-to-peer networking.


Base unit features 100baseTX Ethernet,

drive.web

distributed control, and USB port.

So small it’s easy to miss, so smart it’s impossible to beat!

Only 0.78” x 0.79” x 1.37”
(20 x 20 x 35mm)


  • The easiest, affordable way to get all your drives & devices up onto peer to peer Ethernet

  • Improve your system bandwidth by reducing your RS485 network load

  • Add full featured programmable control

  • Same huge processing power as a

    smarty

  • 100baseTX Ethernet peer-to-peer networking

  • USB port for easy system wide programming

  • Fast ModbusRTU or CANbus device interface

dw221 embedded speedy controller for PL/X Series drives

dw221 embedded speedy controller for PL/X Series drives

Overview

Smart Distributed Control Concept

  • No system bandwidth degradation with systems of any size
  • One completely homogeneous environment for drives, controls,
    operator stations, i/o – everything!
  • Complete data consistency throughout a system
  • The ability to store the entire system configuration in the controllers for
    easy field total access
  • The ability to manage total system program thread and hierarchy
  • Consistent multi-level password protection

Key Features

  • Ethernet peer-to-peer networking
  • Gateway options for ModbusTCP/IP, EIP, CANopen and others
  • Internet access
  • Graphical Signal Flow Diagram system documentation
  • Easy interface to most operator stations, PLCs, SCADA, etc.
  • Event driven emails from devices

Precision

  • 16-bit integer basic arithmetic
  • 32-bit floating point calculator functions

Standard savvyPanel Library

For iPad, iPhone, and touchscreen PC operator stations with arrows, meters, start and stop pushbuttons.



Standard Function Block Library

  • Adders, Subtracters, Multipliers, Dividers, Clamps, Switches, Logic
  • Event driven email messages
  • Full featured PI controllers

Optional Function Block Libraries

  • Advanced Process Control & PLC
  • Winder Control
  • Advanced Math

Standards

CE, FCC part 15, IECS-003, UL/cUL in 2014

Specifications

speedy…Controllers for embedding in drives


Used for all programmable control, peer-to-peer Ethernet networking and system integration tasks.


Standard Features

  • Device interface port – either:
    • a) ModbusRTU master up to 500 kb/s
    • or b) Dedicated CANopen link
    • or c) Other dedicated drive interface
  • USB port for easy system wide programming and control
  • Easy interface to most drives
  • Use networked or stand alone as a gateway
  • Internet accessible
  • Peer to peer, deterministic, Ethernet networking, 100baseTX or 10baseT Ethernet with auto-negotiation Full duplex supported
  • Auto-MDIX per IEEE802.3ab (auto-crossover resolution)
  • drive.web distributed control
  • Intuitive, graphical function block programming tools
  • Complete graphical configuration & documentation data stored in devices
  • Firmware field upgradable
  • All circuit boards conformal coated for very high reliability
  • SNTP server time/date synchronization support (without battery backup)
  • 100% backward compatible with all existing drive.web installations


Optional Features

  • Full savvyPanel touchscreen PC and iOS device capability
  • EIP/PCCC Ethernet
  • Function Block Libraries for advanced process control, winders, and solar
  • DIN rail mount with screw terminals for ModbusRTU port
Models & Options

Models

dw220speedy generic interface controller with 500kbps ModbusRTU master & 15” wire interface
dw221speedy plug-in automation controller for PL/X Series DC Drives
dw222speedy plug-in automation controller for E2 General Purpose VFDs
dw223speedy plug-in automation controller for ODP Sensorless Vector Drives
dw224speedy plug-in automation controller for P2 Closed Loop Vector Drives
dw224Sspeedy plug-in automation controller for SEW Eurodrive MLTP Closed Loop Vector Drives
dw225speedy automation controller for Yaskawa F7 drives with 15” wired interface
dw228speedy plug-in automation controller for E3 Series General Purpose Drives
dw229speedy automation controller with generic CANopen device with 15″ wired interface

Options

* Options are mutually exclusive | X = Available if not excluded | S = Standard feature

Function Block Librariesdw220dw221dw222dw223dw224dw225dw228dw229
-05Advanced Process Control Function Block Library (FBL)
(comparators, profilers, presets, latches, filters, counters, timers, PIDs and more)
X
X
X
X
X
X
X
X
-06Winder Control FBL (dia. calc., taper tension., torque comp.)
X
X
X
X
X
X
X
X
-10Advanced Math FBL (trigonometric, log, exponential)
X
X
X
X
X
X
X
X
-29Solar FBL with sun position calculator
X
X
X
X
X
X
X
X
-36Motion Control FBL with trapezoidal motion & cam profile
X
X
X
X
X
X
X
X
Communications Optionsdw220dw221dw222dw223dw224dw225dw228dw229
-04Ethernet Modbus TCP/IP slave
S
S
S
S
S
S
S
S
-25Ethernet EIP/PCCC interface for AB PLCs
X
X
X
X
X
X
X
X
I/O Optionsdw220dw221dw222dw223dw224dw225dw228dw229
-26savvyPanel iPad/iPhone & touch screen PC operator station interface
S
S
S
S
S
S
S
S
Mounting Optionsdw220dw221dw222dw223dw224dw225dw228dw229
-50DIN rail mount with screw terminal connections
X
X
X
